From Drawings to Delivery: Coordinating Handoffs in Construction Assemblies

In complex commercial construction, errors rarely originate from a single trade’s lack of technical skill. Instead, the vast majority of costly variations, rework, and schedule slippages happen in the seams—the administrative and physical handoffs where design intent transitions into fabrication detailing, purchasing converts into logistics shipping, and crated materials arrive at an active building site.

When information moves between architectural designers, specialty trade fabricators, procurement buyers, freight carriers, and field installation superintendents, each handoff represents an operational risk. Establishing disciplined, cross-functional handoff protocols prevents uncoordinated submittals from turning into expensive jobsite clashes.

+--------------------------------------------------------------------+
|               4 CRITICAL PROJECT HANDOFF JUNCTIONS                 |
|                                                                    |
|  [1. Design to Detailing]     ---> Architect to Fabricator Shop Dwg |
|         |                          (LOD 300 -> LOD 400)            |
|         v                                                          |
|  [2. Detailing to Procurement] -> Stamped Drawings to Factory BOM |
|         |                          (Cutting lists & hardware)      |
|         v                                                          |
|  [3. Factory to Logistics]    ---> Crated Delivery & Site Staging  |
|         |                          (Crane hook-time & floor loads) |
|         v                                                          |
|  [4. Delivery to Installation] --> Dry-in Sign-off to Finishes     |
|                                    (Pre-requisite trade sign-offs) |
+--------------------------------------------------------------------+

---

1. Junction 1: Transitioning Architectural Drawings to Fabrication Detailing

Contract architectural drawings represent design intent—they illustrate wall types, aesthetic profiles, and overall performance criteria. They are not intended for direct manufacturing or field assembly.

The LOD 300 to LOD 400 Detailing Gap

A common coordination breakdown occurs when procurement teams purchase materials directly from tender drawings before Level of Development (LOD) 400 fabrication shop drawings are completed:

• Tender/Design Intent (LOD 300): Depicts a nominal 150mm wall cavity, generic horizontal reveal joints, and schematic anchor brackets.
• Fabrication/Assembly Detailing (LOD 400): Must resolve exact fastener drill hole diameters, thermal isolator shim thicknesses, panel corner miter cuts, and tolerance allowances for concrete slab edge deviations.
• Handoff Rule: Never issue fabrication releases or wire factory deposits until the architect and structural engineer of record have returned shop drawings stamped “Reviewed / Approved as Noted”.

---

2. Junction 2: Connecting Approved Drawings to Bill of Materials (BOM)

Once shop drawings are formally approved, engineering detailing must be translated into an exact Bill of Materials (BOM) for factory cutting and procurement packaging.

Coordination Focus Area	Standard Coordination Vulnerability	Preventive Handoff Protocol
Revision Control & Delta Clouds	Ordering based on superseded Rev B drawings while the site operates on Rev D	Require every Purchase Order annex to state the exact drawing number, revision letter, and date
Fastener & Anchor Metallurgy	Sourcing general-purpose zinc screws instead of specified 316 stainless anchors	Include anchor schedule and compatibility verification in the formal procurement package
Accessory and Gasket Inclusion	Cladding arrives on site without perimeter EPDM closures, delaying installation	Mandate complete assembly kits where panels, sub-girts, and fasteners are delivered as unified sets
Attic Stock / Spare Parts	Forgetting project specifications that require 2% to 5% spare panels for future maintenance	Account for attic stock in the primary production run to prevent batch-to-batch color mismatches later

---

3. Junction 3: Logistics, Freight Dispatch, and Jobsite Staging Logistics

Delivering building envelope materials to a crowded urban commercial jobsite requires precision logistics. A supplier cannot simply dispatch a 40-foot flatbed trailer without coordinated site receiving arrangements:

+-------------------------------------------------------------+
|              JOBSITE RECEIVING & STAGING AUDIT              |
|                                                             |
|  [Site Delivery Slot] ===> 48-hr gate reservation notice   |
|         |                                                   |
|         v                                                   |
|  [Vertical Rigging]   ===> Crane hook-time / hoist booked   |
|         |                                                   |
|         v                                                   |
|  [Floor Live Load]    ===> Crate weights <= max slab limits |
|         |                                                   |
|         v                                                   |
|  [Weather Protection] ===> Elevated on dunnage, waterproofed |
+-------------------------------------------------------------+

Critical Jobsite Staging Considerations

1. Delivery Window & Gate Access: Establish a formal 48-hour delivery notification protocol. Unscheduled freight arrivals risk being turned away by the general contractor, incurring heavy truck detention charges.
2. Crane Hook-Time and Hoist Availability: Heavy crates containing glass units, architectural precast, or bundle steel must be hoisted immediately upon arrival. Confirm that tower crane hook-time or mobile crane equipment is scheduled and certified.
3. Floor Slab Load Capacity: Warning: Stacking multiple heavy crates in one localized area of a newly poured suspended concrete slab can exceed allowable construction live loads (commonly 2.4 to 4.8 kPa / 50 to 100 psf). Consult the structural engineer to establish maximum allowable crate stacking heights and designate proper load-bearing post shores.
4. Moisture Protection and Staging: Store crated panels on raised timber dunnage (minimum 100mm off the ground) under breathable, waterproof tarpaulins. Never allow sensitive gypsum sheathing or insulation to sit in standing jobsite water.

---

4. Junction 4: Trade Sequencing and Prerequisite Sign-offs

A wall assembly relies on multiple trade contractors executing their work in a strict chronological sequence. If one trade jumps ahead out of sequence, costly rework and water damage inevitably follow:

The Golden Rule of Building Envelope Sequencing: “Dry-In Before Finishes”

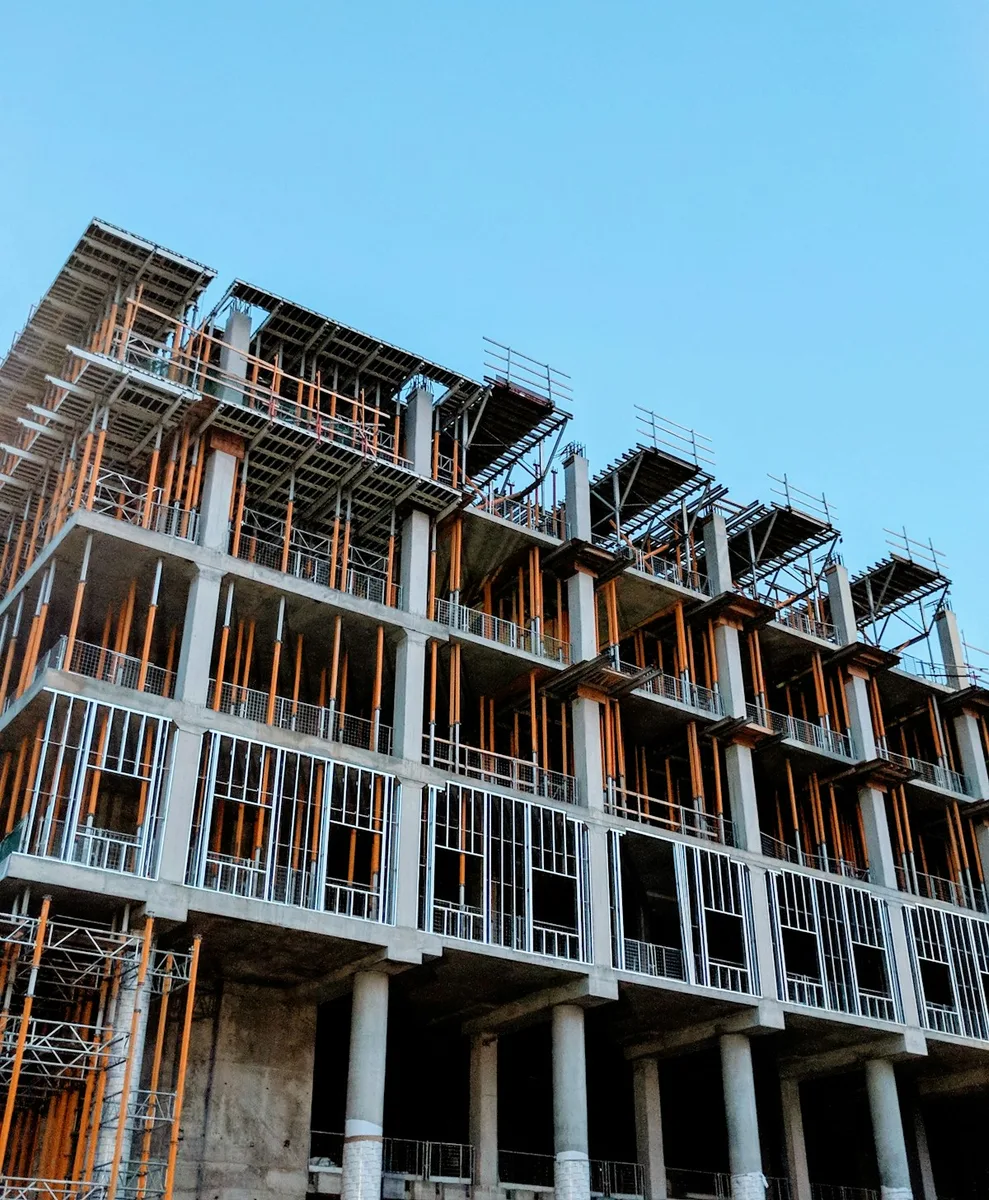

• Substrate Plumbness Survey: Concrete and steel structural frames must be surveyed before sub-framing starts. If the concrete slab edge bulges out by 25mm, framing contractors cannot maintain plumb wall lines without shimming brackets beyond their tested capacity.
• Air/Water Barrier Inspection and Sign-Off: The weather-resistive barrier (WRB), self-adhered flashings, and penetration boots must be inspected, documented, and signed off prior to installing insulation or exterior cladding. Once cladding panels are installed, inspecting barrier continuity is impossible without destructive disassembly.
• Mechanical, Electrical, and Plumbing (MEP) Rough-ins: Verify that all exterior through-wall conduits, scuppers, pipe penetrations, and anchor points are fully flashed and sealed before the exterior cavity is closed up.

---

5. The Standard Handoff Transmittal Template

To eliminate ambiguous email chains and unconfirmed verbal agreements on site, adopt a standardized Handoff Transmittal Note for every critical exchange of information:

### CONSTRUCTION ASSEMBLY HANDOFF TRANSMITTAL
- **Date & Transmittal Ref**: 2026-09-06 / TR-WS-0042
- **From**: Lead Envelope Coordinator (Matthew Sullivan)
- **To**: Exterior Framing Trade Superintendent / Procurement Desk
- **Subject**: Release of Level 3-5 Exterior Rainscreen Sub-framing
- **Current Drawing Reference**: A-402 Rev C (Approved as Noted on 2026-08-28)
- **Confirmed Prerequisites**:
  1. Concrete slab edge survey completed (Laser scan log #LS-012 attached).
  2. Fluid-applied air barrier adhesion test passed (Report #WRB-034).
- **Open Action Item / Request**:
  Confirm delivery schedule for thermally broken brackets (PO #4820) by Thursday 14:00.
- **Accepted By**: [Signed & Stamped]

By institutionalizing clear revision tracking, formal delivery reservation windows, structural floor-load checks, and rigorous trade sequencing sign-offs, construction managers protect project profitability and ensure seamless execution from first drawing to final building handover.
